Ideal For
» Employee ID and access control cards
» Student and faculty ID cards
» Membership and loyalty cards
» Personalized gift cards
Everything you need to print professional-quality cards
» Set up your card printing system and begin producing photo IDs in minutes with the Zebra QuikCard ID Solution—no software expertise necessary. It includes everything you need to quickly, easily and cost-effectively make professional-quality identification, security and commerce-related cards.
Easy and complete solution

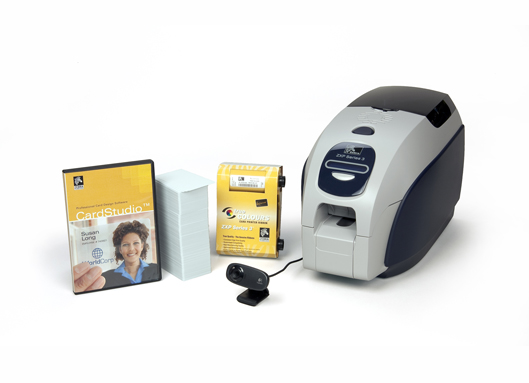

» The feature- and value-packed kit includes:
» Choose ZXP 3 single-sided, or dual-sided card printer
» Available with or without magnetic stripe encoding
» USB high-definition webcam for capturing photo ID pictures
» 16 character LCD operator display
» Genuine Zebra media starter kit with 200 cards and one color ribbon cartridge
» 300 dpi (11.8 dots/mm) print resolution

Download QuickCard ID Solution Brochure
General Specifications
» Direct-to-Card Dye Sublimation
» Single- or dual-sided printing
» 180 cph, color, single-sided printer
» Card input feeder: 100 cards (30 mil)
» Card output feeder: 45 cards (30 mil)
» 16 character LCD operator display
» Integrated Card Feeder
Color Printing
» Full Color Monochrome
» 300 dpi (11.8 dots/mm) print resolution
Software
» ZMotif CardStudio software for custom card designs (languages supported: English, German, French, Italian, Spanish, Portuguese, Danish, Czech, Korean, Japanese and Traditional and Simplified Chinese)
» Windows drivers: Windows 7 and Vista, 2000, XP, Server 2003, Server 2008
Media Characteristics
» Zebra True Colours ix Series high performance ribbons with inelligent media technology
» Load-N-Go drop-in ribbon cartridge with integrated card cleaning roller
Communications Interface
» USB V2.0 (cable included)-standard
» Built-in 10/100 Ethernet - option
Mechanical
» Height : 12.2" (309 mm)
» Width : 7.9" (201 mm)
» Width : 30.75"/781 mm
» Depth: 14.5" (368 mm)
» Weight : 12.2 lbs (5.53 kg)
Electrical
» 100 - 240 Volts AC, 50 - 60 Hz (auto switching)
» Ventilation: Free air
Environmental
» Operating temperature: 60° F (15° C) to 86° F (30° C)
» Operation humidity :20% - 70% non-condensing
» Storage Temperature: 23° F (-5° C) to 158° F (70° C)
» Storage Humidity: 20% - 70% non-condensing
Options
» Magnetic stripe encoder
» Smart card contact station
» Combined MIFARE
» Encoding over Ethernet and USB
» Extended warranty programs
» Hot swap warranty programs (USA only)
See this page for a full list
