CARD PRINTER

Ideal for
» Access Control
» Gift Cards
» Loyalty Cards
» Membership Cards
» Staff Identification
» Student Identification
» Visitor Identification

Powerful

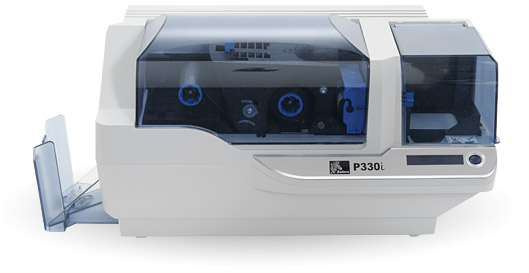

» Setting new standards, this single-sided, full color card printer is loaded with user-friendly features and dynamic options, which make it the most powerful and flexible printer in its class.

Reliable
» With its new, innovative highly reliable angled feeder design (patent pending), there is simply no better choice than the P330i for mission critical applications.

Flexible
» Designed to integrate seamlessly in a wide variety of applications, the P330i comes standard with an LCD and offers a full range of options, including build-in Ethernet.

Zebra i Series Intelligent Printing System
» The P330i also features the benefits of enhanced Series functionality. i Series printers are designed to make card printing a simple function for all users.
» The system features:
» Advanced RFID Technology
» Automatic Driver Configuration
» Intelligent Color Optimization
» Ribbon Image Counter & Ribbon Low Notification
» Enhanced Ribbon Formulation

Download P330i Card Printer Brochure

General Specifications
» High speed printing
» 144 cards/hour for color, single side (YMCKO)
» 600 cards/hour for resin black (K)
» Windows® Drivers: 2000, XP, Server 2003; Vista compatible
» Two (2) year warranty on card printer and original printhead (unlimited passes) - if shipped on or after January 1, 2007
» One (1) year warranty applies to printers shipped prior to January 1, 2007

Color Printing
» Color dye sublimation or monochrome thermal transfer printing
» 25 seconds per card full color single sided (YMCKO)
» 300 dpi (11.8 dots/mm) print resolution

Bar Codes
» Code 39
» Code 128 B & C with & without check digit
» 2 of 5 & 2 of 5 Interleaved
» UPC-A
» EAN 8 & EAN 13
» PDF-417 2D bar code and other symbologies can be printed via Windows® drivers.

Fonts
» True Type fonts via Windows drivers.

Card Specifications
» Types: PVC, PVC Composite, UHF Gen 2 RFID, Adhesive backed
» Card width/length: ISO CR-80 - ISO 7810, 2.12"" (54mm) X 3.385"" (86mm)
» Magnetic Stripe - ISO 7811
» Smart Card - ISO 7816-2
» Card thickness: 10 mil (.25mm) to 60 mil (1.524mm)
» Card feeder capacity: 100 cards (30 mil)
» Card output hopper capacity: 100 cards (30mil)
» Optional card feeder capacity: 220 cards (30mil)

Ribbon Specifications
» i Series Printers require the use of i Series ribbons for full color printing
» Monochrome: 1500 and 1000 cards/roll
» KdO and KrO: 500 cards/roll
» YMCK: 400 cards/roll
» YMCKO: 200 & 330 cards/roll
» 1/2 panel YMCKO: 450 cards/roll
» Overlay varnishes (clear and hologram): 350 cards/roll

Communications Interface
» USB (cable included)
» Built-in Ethernet (optional)

Mechanical
» Height: 10.1"" (256mm)
» Depth: 9.4"" (239mm)
» Width: 18.2"" (462mm)
» Weight: 15.5 lbs (7.0kg)

Electrical
» 100 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching)
» 20 MB image memory standard
» FCC Class B, CE, UL and CUL approved

Environmental
» Quiet for offices!
» Operating Temperature: 60°F to 86°F (15°C to 30°C)
» Operating humidity: 20% to 65% non condensing
» Storage temperature: 23°F to 158°F (-5°C to 70°C)
» Storage Humidity: 20% to 70% non-condensing
» Ventilation: Free air

Options
» UHF Gen 2 RFID encoder
» Smart card contact station (30 mil cards only)
» Built-in Ethernet (10/100)
» Contactless encoder (MIFARE)
» High capacity feeder (220 cards)
» Magnetic encoder (20-40 mil cards only)
» Extended warranty program
» Hot Swap warranty program (USA only)
