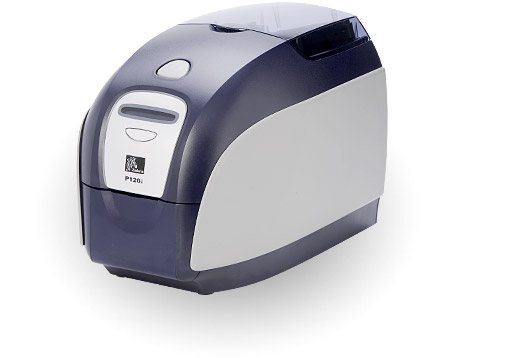

Card Printer

Ideal For
» Access Control
» Gift Cards
» Loyalty Cards
» Membership Cards
» Staff Identification
» Student Identification

Economical
» Modern design, high-tech materials and new electronics make the P120i the most affordable dual-sided card printer.

Versatile
» Compact and lightweight for use anywhere; Print dual-sided or single-sided, full-color or monochrome; Automatic card feeder or CardSense™ single-card feed; Optional magnetic stripe encoding.

Easy-to-Use
» Load-N-Go™ ribbon cartridge with integrated card cleaning roller; i Series™ automatic ribbon detection and printer configuration; Backlit LCD message display; Translucent card input cover; Tool-less printhead replacement.

Download P120i Card Printer Brochure

General Specifications
» Integrated card feeder and flipper
» Load-N-Go™ drop-in ribbon cartridge
» 16-digit LCD display
» Windows® Drivers: 2000, XP, Server 2003; Vista compatible
» Two (2) year warranty on card printer and original printhead (unlimited passes) - if shipped on or after January 1, 2007
» One (1) year warranty applies to printers shipped prior to January 1, 2007

Printing
» Color dye sublimation or monochrome thermal transfer printing
» 30 seconds per card full-color single-sided (YMCKO)
» 40 seconds per card full-color dual-sided (YMCKOK)
» 300 dpi (11.8 dots/mm) print resolution

Bar Codes
» Code 39, Code 128 B & C with & without check digit
» 2 of 5 & 2 of 5 Interleaved
» UPC-A, EAN 8 & EAN 13
» PDF-417 2D bar code and other symbologies can be printed via Windows drivers

Card Specifications
» Types: PVC, PVC Composite
» Card width/length: ISO CR-80-ISO 7810, 2.12"" (54mm) x 3.38"" (86mm)
» Magnetic Stripe-ISO 7811
» Smart Card-ISO 7816
» Card thickness: 30 mil (.76mm)
» Card feeder capacity: 100 cards (30 mil)
» Card output hopper capacity: 45 cards (30 mil)

Ribbon Specifications
» Load-N-Go™ ribbon cartridge with integrated card-cleaning roller
» i Series ribbon information technology
» YMCKO: 200 cards/cartridge
» YMCKOK: 165 cards/cartridge
» Monochrome: 1000 cards/cartridge in black, blue, or white

Communications Interface
» USB 1.1 (cable included)
» Built-in 10/100 Ethernet (factory installed only)

Mechanical
» Width: 7.9 in (201mm)
» Depth: 12.9 in (328mm)
» Height: 9.25 in (235mm)
» Weight: 10 lbs (4.5kg)

Electrical
» 100 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching)
» 8MB image memory standard
» FCC Class A, CE, UL and CUL approved

Environmental
» Operating Temperature: 60°F to 86°F (15°C to 30°C)
» Operating Humidity: 20% to 65% non-condensing
» Storage Temperature: 23°F to 158°F (-5°C to 70°C)
» Storage Humidity: 20% to 70% non-condensing
» Ventilation: Free air

Options
» CardSense™ single card-feed mode
» Magnetic encoder (30 mil cards only), 3 track HiCo/LoCo (Must be specified at the time of order)
» Starter Kit (200 - 30 mil PVC cards and 1YMCKOK ribbon)
» Cleaning Kit (4 print engine and 4 feeder cleaning cards)
