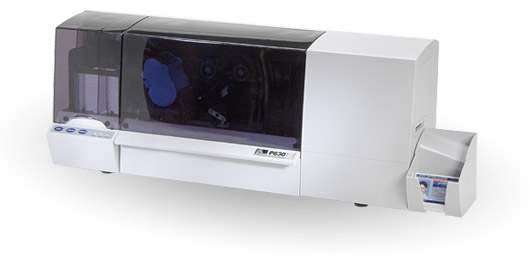

CARD PRINTER

Ideal for
» Access Control
» Driver Licensing
» National Identification
» Secure Identification

Many "Best In Class" Features
» Lowest consumables cost per card in the industry
» Fast laminating and printing speed combine to deliver maximum card throughput per hour
» Superior print quality for optimal color fidelity and precision details
» Patented linerless lamination dramatically reduces the cost of laminate material and is waste-free

Multiple Security Features
» Security features available for all components required to create highly secure and durable ID card including cards, print ribbons, laminates, printer, and software printer driver.

Ease of Use with Reliability Built In
» The P630i’s consistent, reliable operation, high print speed and minimal operator attention provide maximum card output over years of intense use.

Download 630i Desktop Printer Brochure

General Specifications
» Dual-sided printing and single-sided waste-free lamination
» 120 cards/hour dual-sided printing and single-sided laminating (YMCK ribbon & 1.0 mil laminate one side)
» Micro-positioning card transport system for enhanced color photos
» Complete system security features & options for printer, ribbons, laminate, cards, and card issuance process
» Covert printing capability – text approx 17 mil high
» Automated card cleaning before printing
» Windows® drivers for 2000, XP, Server 2003, Vista
» Advanced security features (ID/Log & password protection)
» One year printer warranty
» One year (unlimited passes) printhead warranty

Color Printing
» Color dye sublimation and resin K
» 30 seconds per card (YMCK & single-sided lamination)
» 300 dpi (11.8 dots/mm) print resolution

Bar Codes
» Bar code and other symbologies available via Windows driver.

Fonts
» True Type or other type fonts via Windows driver.

Card Specifications
» Types: PVC Composite
» Card width/length: ISO CR-80 – ISO 7810, 2.12” (54mm) x 3.38” (86mm)
» HiCo Magnetic Stripe – ISO 7811
» Contact Smart Card – ISO 7816 Compliant
» Contactless Smart Card – 13.56 MHz
» Card thickness: 27 mil – 33 mil
» Card input hopper capacity: 150 cards

Ribbon Specifications
» YMCK: 600 images/roll
» YMCKK: 500 images/roll
» YMCUvK: 500 images/roll
» Monochrome: 3000 images/roll
» Cleaning cartridge: cleans 3,000+ cards

Laminate Specifications
» Linerless & wastefree 1.0 mil laminate, 600 images/roll
» 2 Laminate cassettes (upper & lower)
» Laminates available
» Clear full size, clear for magnetic stripe cards and clear for smart cards
» Custom laminates available upon request: Holographic images, Special OVD images, UV images

Communications Interface
» USB 1.1 (standard)
» Built-In 10/100 Ethernet (factory installed option)

Mechanical
» Width: 27.5” (699mm) not including exit hopper
» Depth: 9.7” (246mm)
» Height: 11.5” (292mm)
» Weight: 35 lbs (15.9kg)

Electrical
» 110 - 240 Volts AC, 50/60 Hz
» 8 MB image memory standard
» FCC Class A, UL, CUL, & CE approved

Environmental
» Operating temperature: 50°F to 95°F (10°C to 35°C)
» Operation humidity: 20% to 80% non-condensing
» Storage temperature: -4°F to 158°F (-20°C to 70°C)
» Storage humidity: 5% to 90% non-condensing
» Ventilation: Free air

Options
» ID/Key security printing feature
» Magnetic Encoder, 3 track (30 mil cards only, HiCo only)
» Built-in Ethernet for networking capability
» Smart Card Contact Station
» Smart Card Contact encoder/reader
» Linear barcode scanner
» Warranty programs
